Product Introduction

PV Modules

PV Modules
N-Type Module

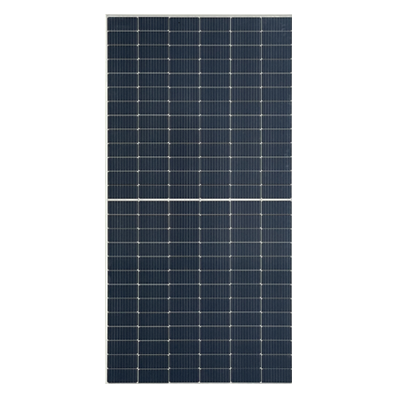

SunDay 10+ N

620~650W

Characteristic

Maximum Efficiency 23.25%
M10-182.2 mm
Half-cut, 16-busbar technology
Bifacial TOPCon
Stronger Durability

Minimized micro-cracks

High PID resistance

Better mechanical loading tolerance

Download catalog

Main parts and structures

Solar Cells	N-Type Monocrystalline
Encapsulant Material	EPE/EPE
Back Materials	Heat Strengthened Glass
Junction Box	IP68, MC4 Connector
Front Materials	AR Coated Heat Strengthened Glass
Frame	Anodized Aluminium Alloy

STC
BSTC

STC

Maximum Power (W)	620	625	630	635	640	645	650
Output Tolerance (%)	0 ~ +5
Module Efficiency (%)	22.18	22.36	22.54	22.72	22.90	23.07	23.25
Open-Circuit Voltage (V)	56.79	56.92	57.04	57.20	57.33	57.46	57.59
Short-Circuit Current (A)	13.74	13.80	13.87	13.93	13.99	14.05	14.11
Max. Power Voltage (V)	47.38	47.57	47.72	47.87	48.03	48.19	48.35
Max. Power Current (A)	13.09	13.14	13.21	13.28	13.34	13.40	13.46

STC The intensity of radiation = Front: 1000 W/㎡, Module temperature: 25 (°C), AM: 1.5

STC
BSTC

BSTC

Maximum Power(W)	678	683	689	694	699	704	709
Module Efficiency(%)	24.25	24.43	24.65	24.83	25.01	25.19	25.36
Open-Circuit Voltage(V)	56.81	56.97	57.18	57.32	57.47	57.62	57.77
Short-Circuit Current(A)	15.13	15.21	15.26	15.33	15.40	15.47	15.54
Max.Power Voltage(V)	47.49	47.68	47.84	48.01	48.15	48.29	48.43
Max.Power Current(A)	14.28	14.34	14.41	14.47	14.53	14.59	14.65

BNPI The intensity of radiation = Front: 1000W/㎡, Back: 135W/㎡, Module temperature: 25 (°C), AM: 1.5
